Model Details

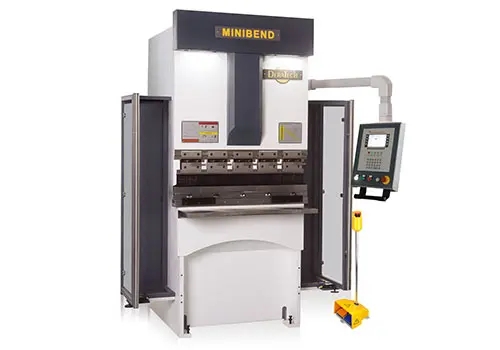

| Miniature Oil-electric hybrid CNC Press brake |
|
|
A |
B |
C |
D |
E |
F |
|
|
|
|
|
L |
W |
H |
|
| Model |
Bending Force (kN) |
Foldable length (mm) |
Pitch of column (mm) |
Throat depth (mm) |
Cylinder stroke (mm) |
Opening height (mm) |
Mold Height (mm) |
Main motor power (kw) |
Hydraulic oil volume (L) |
Maximum speed (mm/s) |
Dimension (mm) |
Weight
(kg) |
| Drive in |
Neutralize |
Return trip |
Long |
Wide |
High |
| TBB-30/1050D |
300 |
1050 |
900 |
200 |
120 |
370 |
420 |
2.8 |
70 |
250 |
20 |
250 |
1350 |
1210 |
2410 |
2800 |
| TBB-35/1250D |
350 |
1250 |
900 |
200 |
160 |
410 |
460 |
2.8 |
70 |
300 |
20 |
250 |
1650 |
1210 |
2490 |
3000 |
| TBB-50/1650D |
500 |
1650 |
1200 |
300 |
160 |
410 |
470 |
2 ×4.7 |
2 ×70 |
300 |
20 |
250 |
2180 |
1440 |
2410 |
4500 |
Inherited European design ideas, appearance, practical and efficient, reliable, high performance-price ratio and low failure rate new style CNC hydraulic press brake machine.

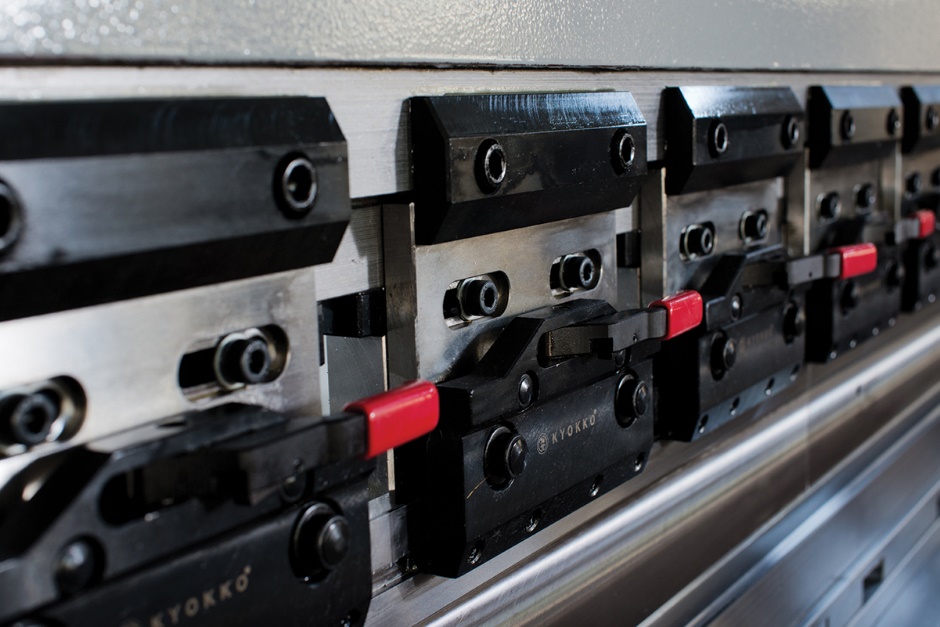

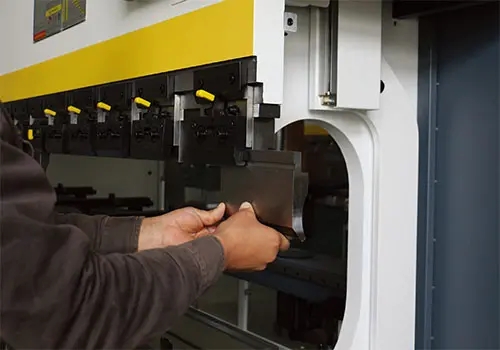

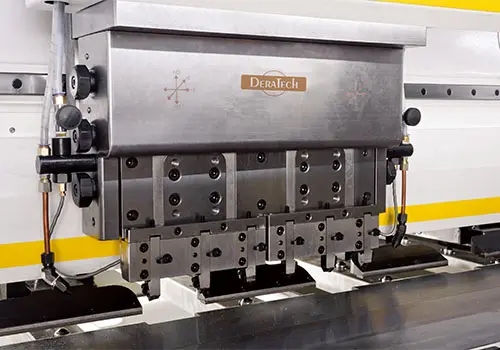

1. High precision and fast clamping system: fast and easy to change the tooling, decreasing labour strength and enhance productivity.
2. High precision and stable back gauge system: new and unique double linear guide construction, to ensure the good positioning accuracy. Design of multistage stops, to increase the positioning range, above the price in value.
3. With independent patent compensates deformed of throat depth: exact measured distortion and feedback compensation, to ensure the precision of the bending, effectively prevent non-standard workpiece collision linear scales.

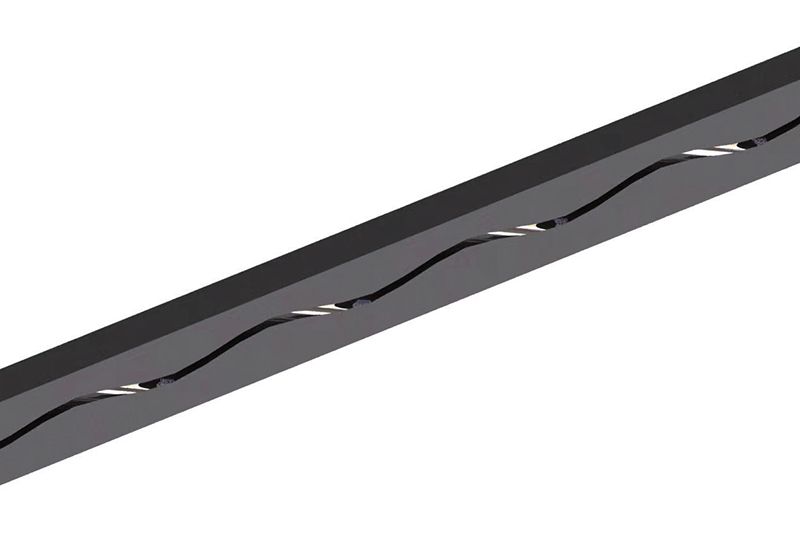

4. High precision mechanical crowning device high-precision wedge compensation device by CNC control, got the precise compensation, ensuring high quality bending accuracy.

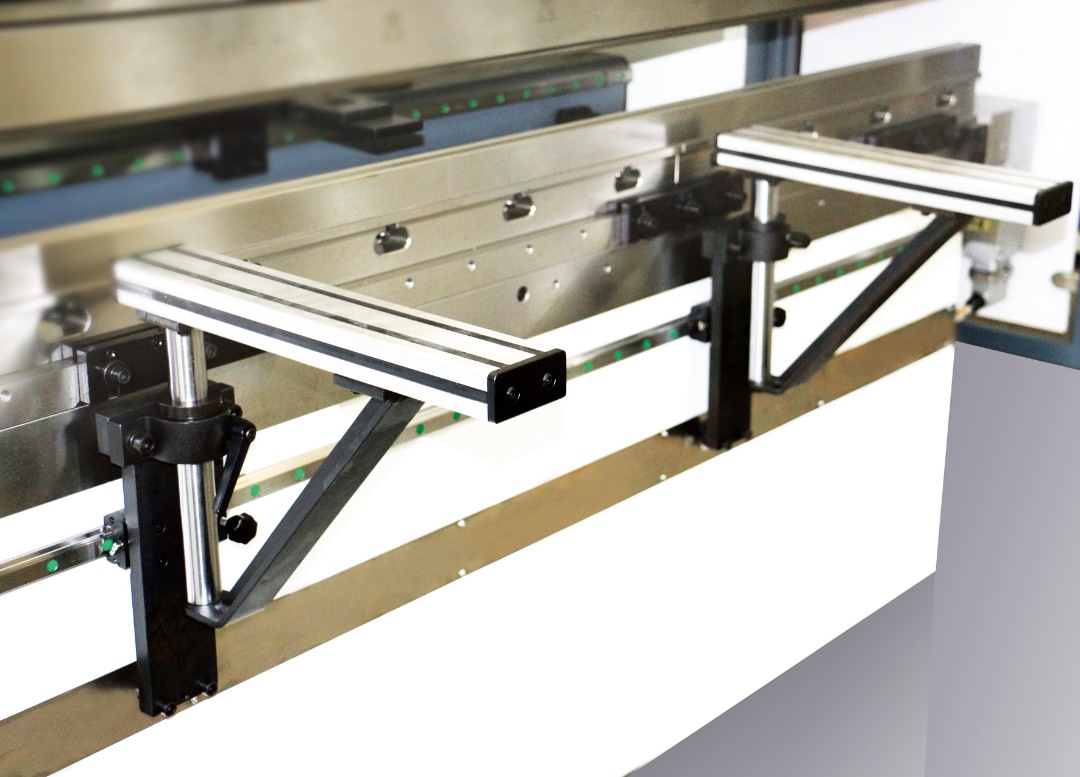

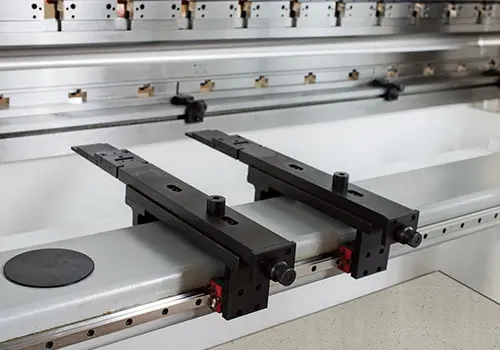

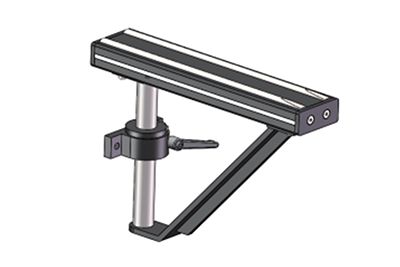

5. Moveable front support system to help you to bend, make a comfortable and efficient working permanent front support system.

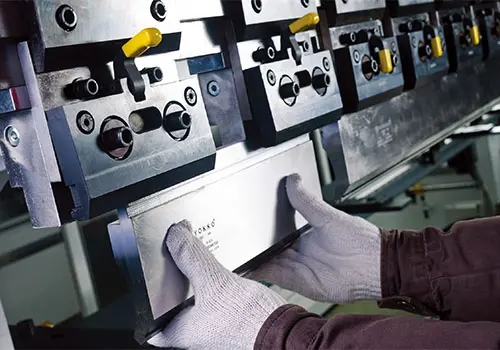

6. Higher quality press brake tooling: whole hardened high precision CNC press brake tooling, it is durable.
7. High quality hydraulic system: Germany original imported, high frequency hydraulic system, low failure rate, machine will run fast and stably.
Oil tank is made by professional special oil proof material, it is easy to get the high cleanliness.
